Thin Film Oven

PRODUCT DETAILS:

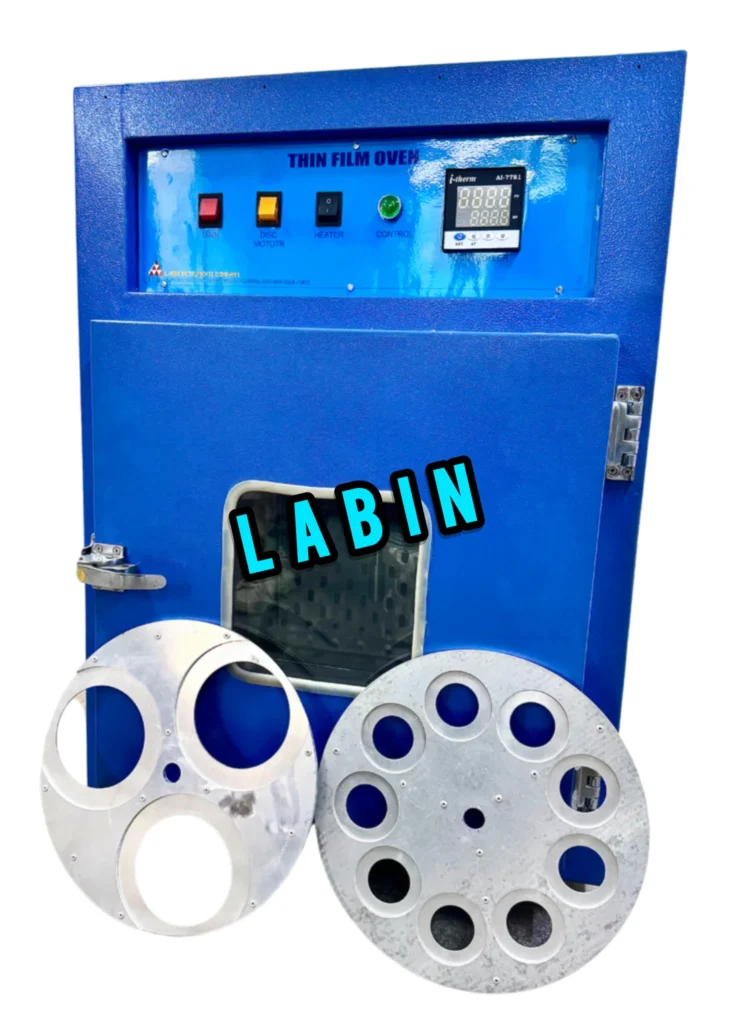

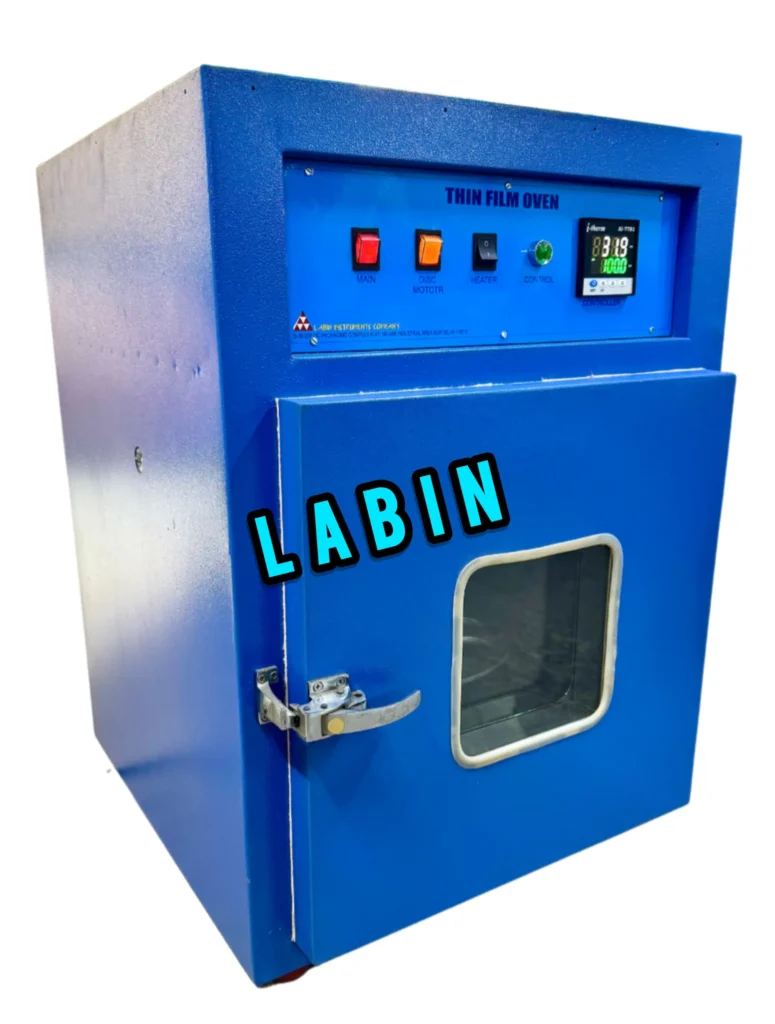

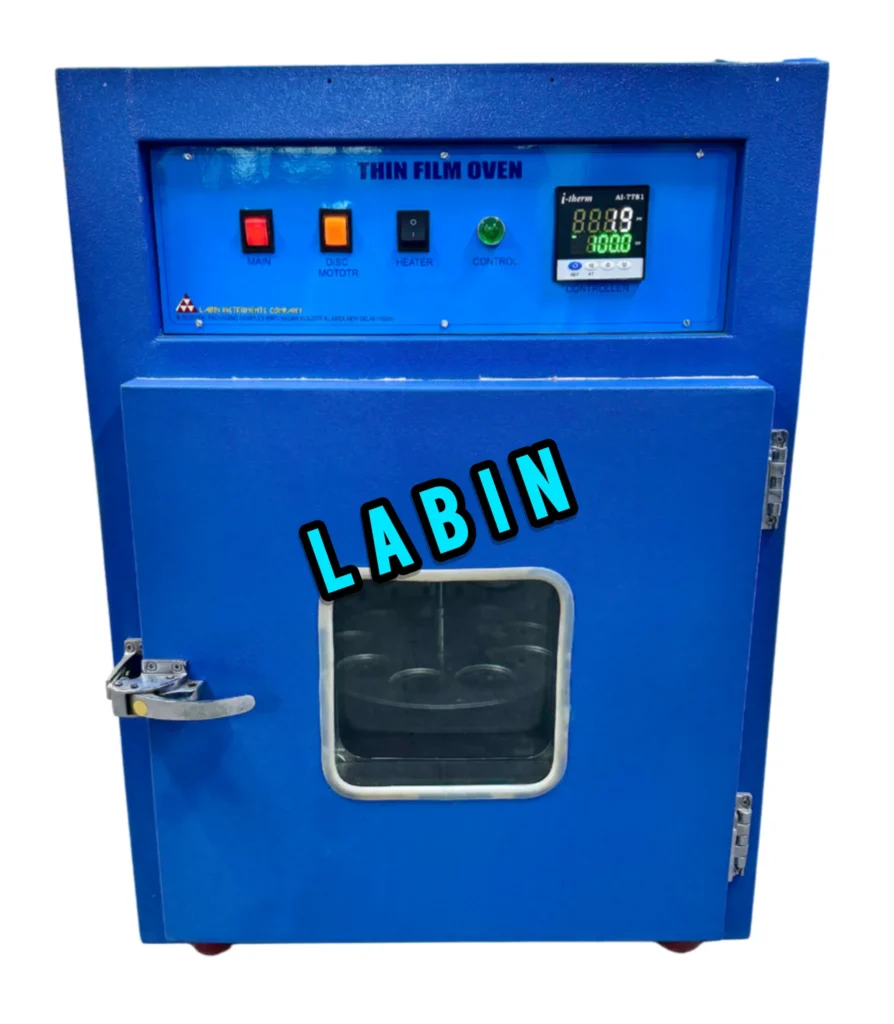

The thin-film oven (TFO) test simulates short-term aging by heating a film of asphalt binder in an oven for 5 hours at 163° C (325° F). The effects of heat and air are determined from changes incurred in physical properties measured before and after the oven treatment by other test procedures.The oven is having a double walled internal chamber of 400mm x 400mm x 400mm (16” x 16” x 16”) made of stainless steel and external body made of mild steel sheet (powder coated paint) with glasswool insulation between the chambers. The oven is having range from ambient plus 10°c to 170°c and fitted with PID digital temperature controller to maintain temperature at 163°c ≤1°c. An external motor with shaft is fitted to rotate the platform at a speed of 5 to 6 rpm and also an air circulating fan to maintain the sensitivity of ± 1°c in the test chamber. The door of the oven body is fitted with toughened glass for viewing the samples during the test.

NOTE: WE ARE PROVIDING ACCESSORIES (3 PANS & 9 CONTAINERS) FOR BOTH THE TESTS IN ONE UNIT.
