PRODUCT DETAILS:
This machine is used for determination of theoretical density of asphalt mixer by vacuum method for applications such as asphalt mixer design, road condition investigation, calculation of porosity and compactness in the road construction quality management.

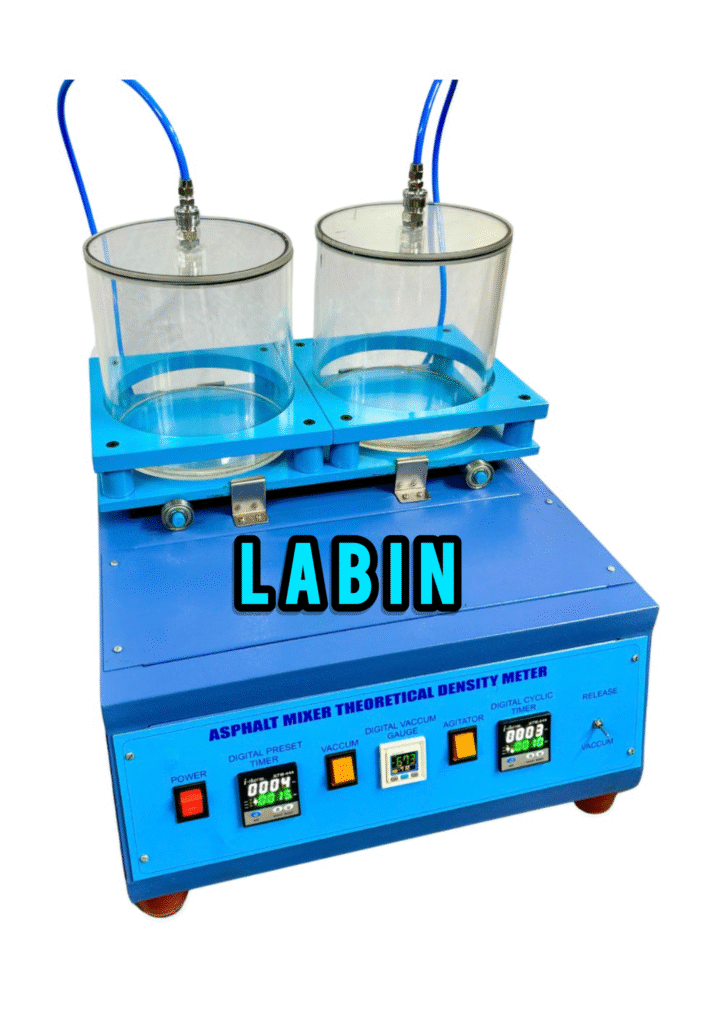

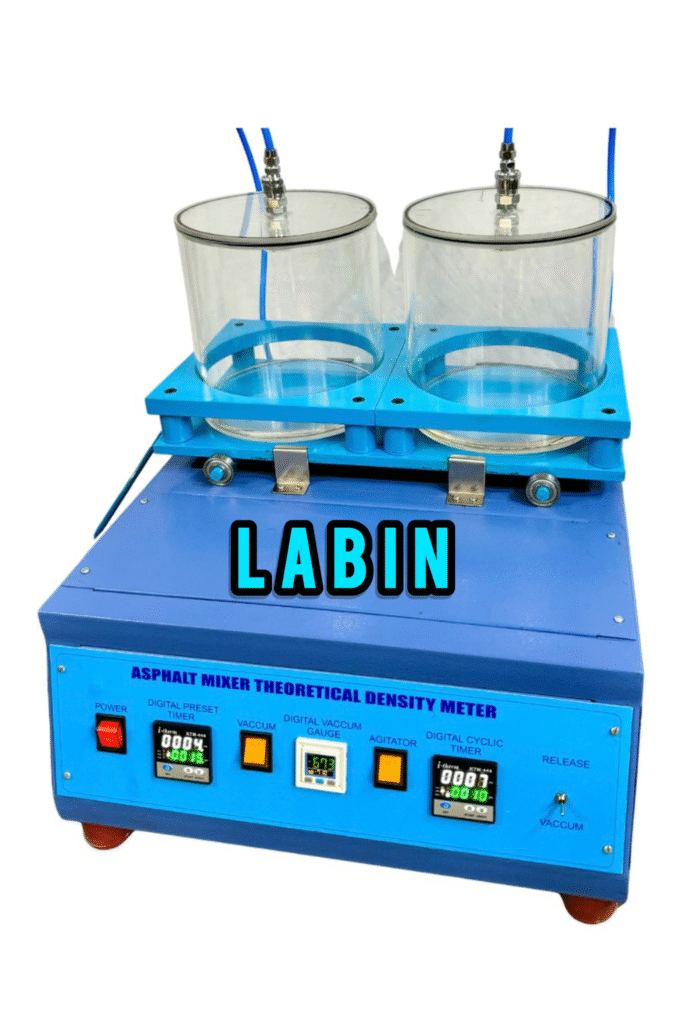

The equipment has a main body fitted with vacuum gauge, two vacuum containers,vibratory table and control panel. The vibratory table operates on automatic mode to release the entrapped air from the asphalt sample. Suitable for operation on 220V,50Hz, Single phase, AC supply.
Technical Specifications:
Vaccum Range: 0-700 mm Hg
Vibration Loading:10 kg
No. of Sample: Two

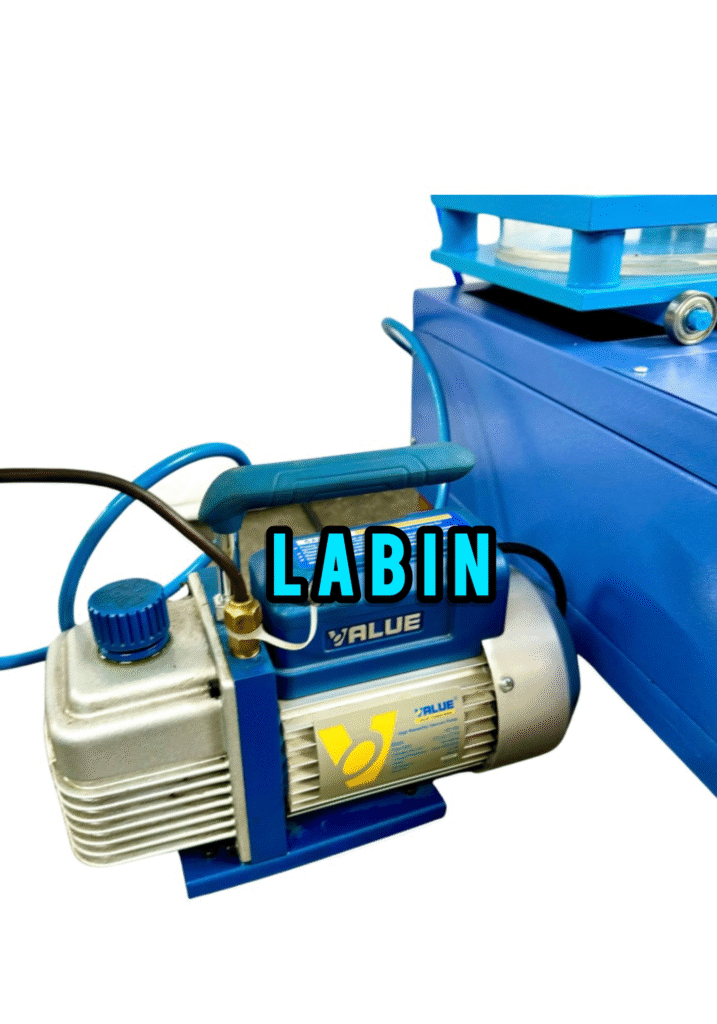

OPTIONAL: VACCUM PUMP AT EXTRA COST.
