PRODUCT DETAILS:

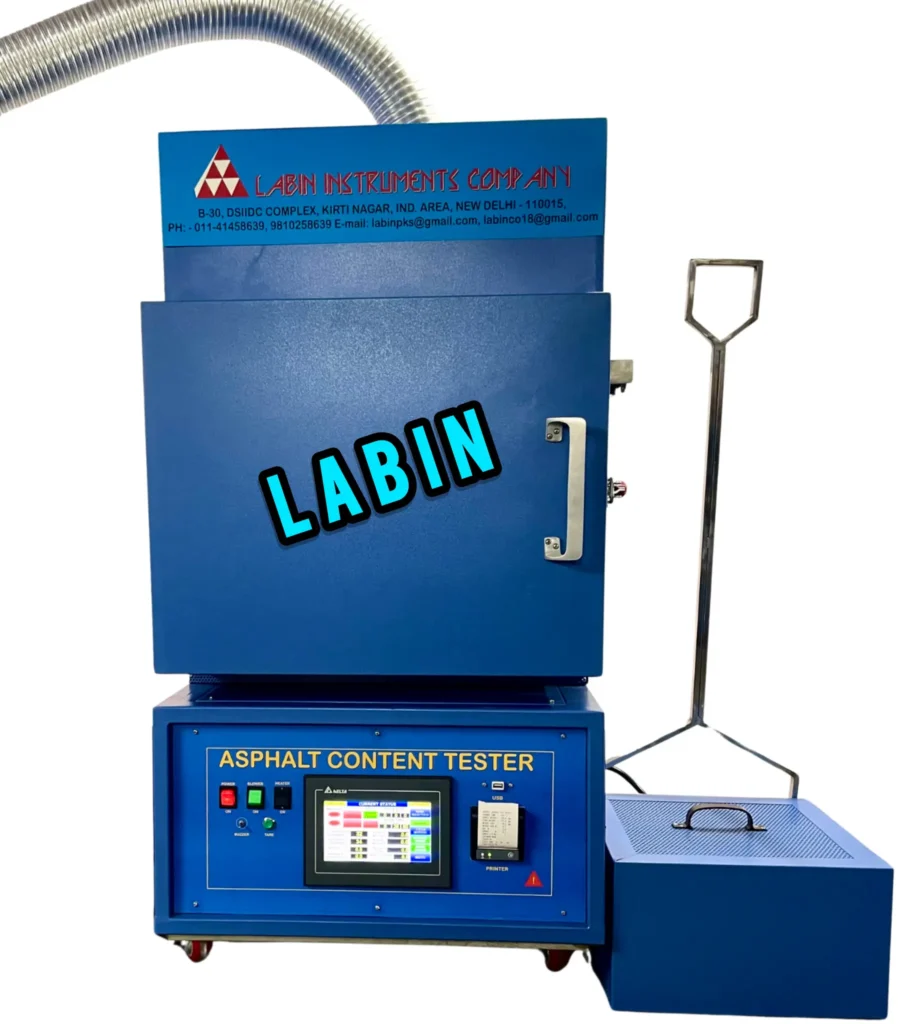

This machine is used to determine the asphalt content of hot mix asphalt (HMA) and pavement samples by removing the asphalt in an ignition furnace by means of sample heating not by means of solvent. Standards followed are ASTM D6307 and AASHTO T308.
The Asphalt Content Tester is a standard for determining the percentage of asphalt in bituminous mixtures, based on the electrical ignition test method. A sample of 1000–1500 grams can be oven tested in between 30-45 minutes. The microcontroller of theAsphalt Content Tester, together with the integrated electronic balance, identifies the final ignition point and indicates the completion of the test. A printer documents the data of the results.
The equipment includes an electric furnace with incinerator, a sophisticated electronic scale integrated with a test controller and a microcontroller data processing unit. All data is displayed in real-time on the touchscreen controller. Above the furnace chamber is a smoke collection chamber where the smoke mixes with the air before being evacuated by the fan through the chimney. The Asphalt Content Tester provides the asphalt content of asphalt mixes.
Suitable for operation on 230V, 50Hz, 24A, SINGLE PHASE, AC supply.
Supplied complete with 1 set of Sample tray, fork to catch and handle the sample tray,gloves and cooling cage.
Technical Specifications:
| Max Weight of Specimen | 4000g |
| Suggested Weight of Specimen | 1000 to 1500g |
| Balance | 10kg × 0.1g accuracy |
| Internal Size of Furnace | STANDARD SIZE: 350mm L × 400mm W × 300mm H |
| Max Temperature of Furnace | 750ºC |
| Standard Working Temperature | 538ºC |
| Testing Time (1000g, 4% specimen) | 35 to 45 min approx (Increases with specimen weight) |
| Memory In-Built | Yes |
